Fuel Filters
Customized Filter
Manufacturing Solution is here!
GDF-217
23303-87780/23303-87781
23300-87710
HEIGHT 118.0 mm
OUTER DIA 80.0 mm
THREAD M20X1.5 UNF
GASKIT INNER
BY PASS VALVE (PRESSURE) NO
ANTIDRAIN BACK VALVE NO

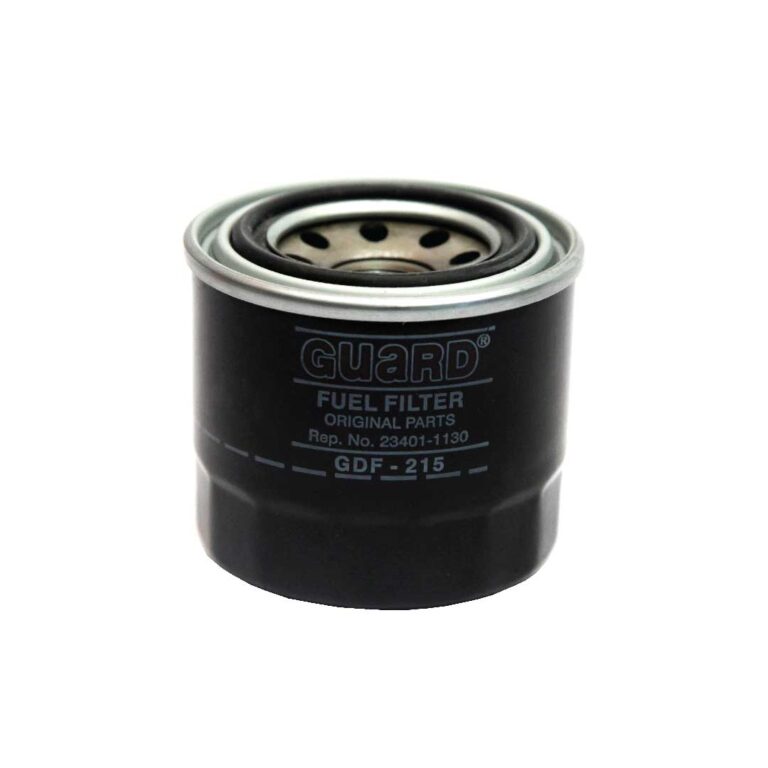

GDF-215
23401-1130/23401-1131
23401-1132
HEIGHT 77.0 mm
OUTER DIA 83.0 mm
THREAD M20X1.5 UNF
GASKIT INNER
BY PASS VALVE (PRESSURE) NO
ANTIDRAIN BACK VALVE NO

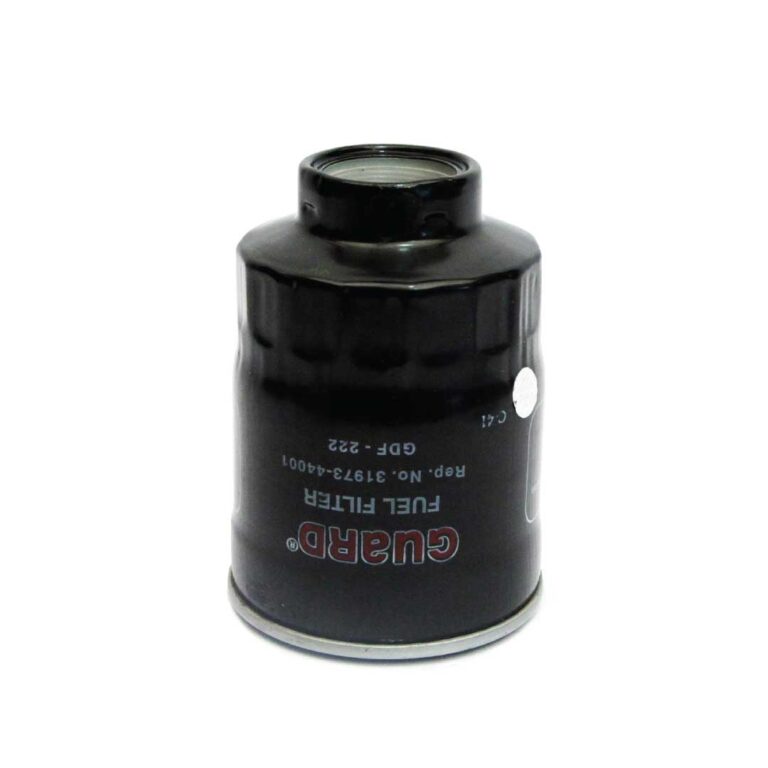

GDF-222
31973-44001
HEIGHT 138.0 mm
OUTER DIA 97.0 mm
THREAD M20X1.5 UNF
THREAD M36X1.5 UNF
GASKIT INNER
PACKING KIT
BY PASS VALVE (PRESSURE) NO
ANTIDRAIN BACK VALVE NO

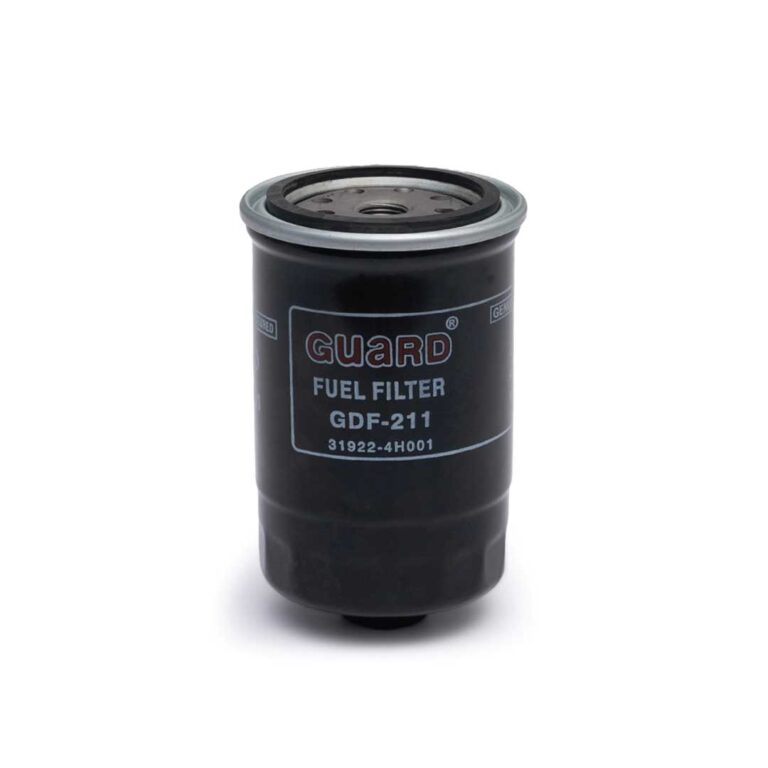

GDF-211
31922-411001
HEIGHT 137.5 mm
OUTER DIA 87.5 mm
INNER DIA M1 6 X 1.5
GASKET INNER
ANTIDRAIN BACK VALVE NO
GDF-224
K71E-23-570
HEIGHT 121.0 mm
OUTER DIA 84.0 mm
THREAD M20X1.5 mm
THREAD M7/8X1.5UNF
GASKIT INNER BY PASS VALVE (PRESSURE) NO
ANTIDRAIN BACK VALVE NO

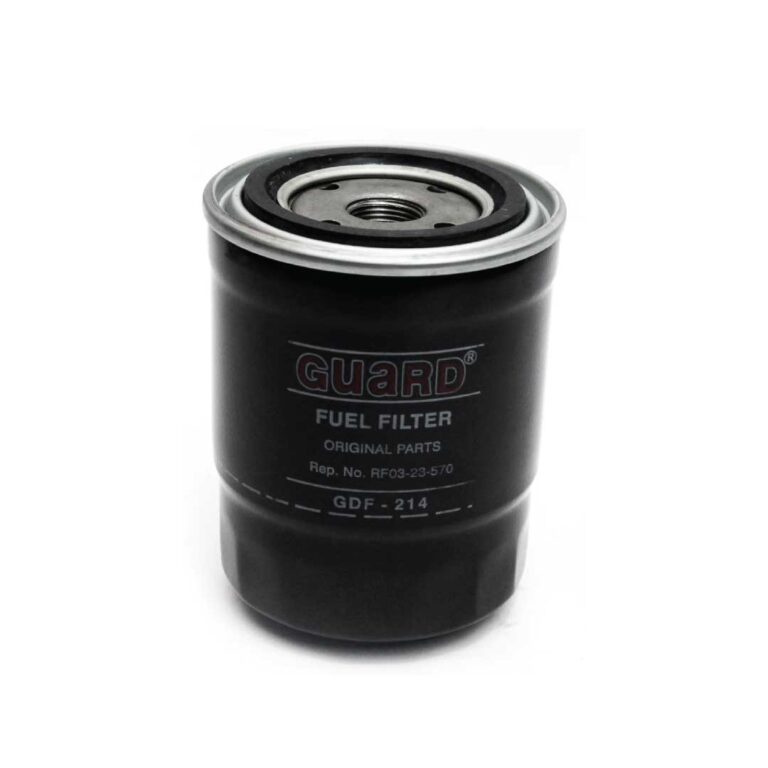

GDF-214
RF03-23-570/S213-23-570
HEIGHT 119.5 mm
OUTER DIA 95.0 mm
THREAD M20X 1.5 UNF
GASKIT INNER
BY PASS VALVE (PRESSURE) NO
ANTIDRAIN BACK VALVE NO
GDF-218
145623570A
HEIGHT 138.9 mm
OUTER DIA 93.7 mm
THREAD M20X1.5 UNF
M36X1.5 UNF
GASKIT INNER
PACKING KIT
BY PASS VALVE (PRESSURE) NO
ANTIDRAIN BACK VALVE NO
GDF-213
23303-24010
23303-64010
HEIGHT 141.5 mm
OUTER DIA 97.0 mm
THREAD 1) M20X1.5 UNF
THREAD 2) M36X1.5 UNF
GASKIT INNER PACKING KIT
BY PASS VALVE (PRESSURE) NO
ANTIDRAIN BACK VALVE NO

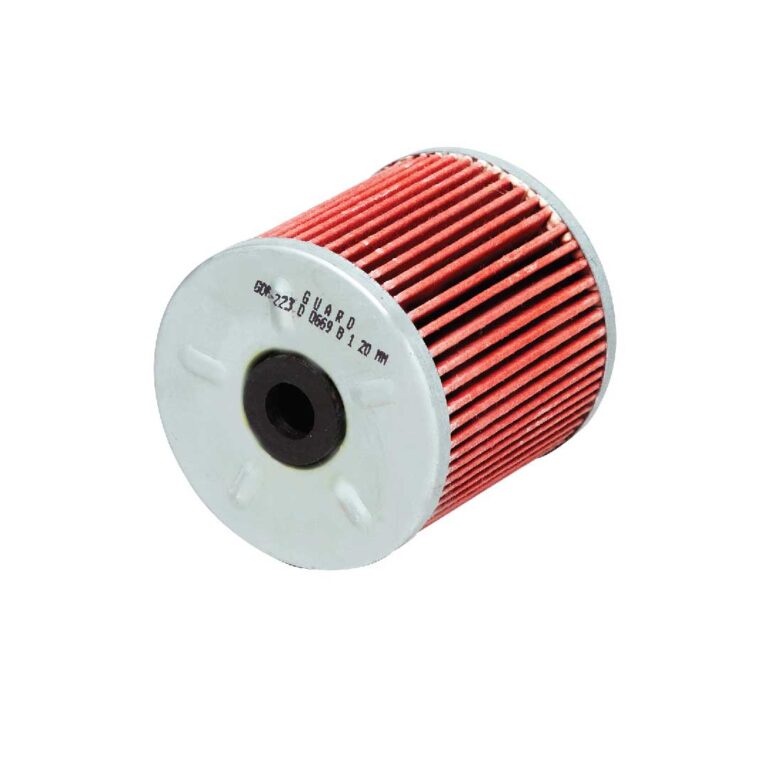

GDF-223
04234-68010
HEIGHT 73.0 mm
OUTER DIA 74.0 mm
INNER DIA 15.53 mm
GASKIT PACKING KIT
PACKING YES

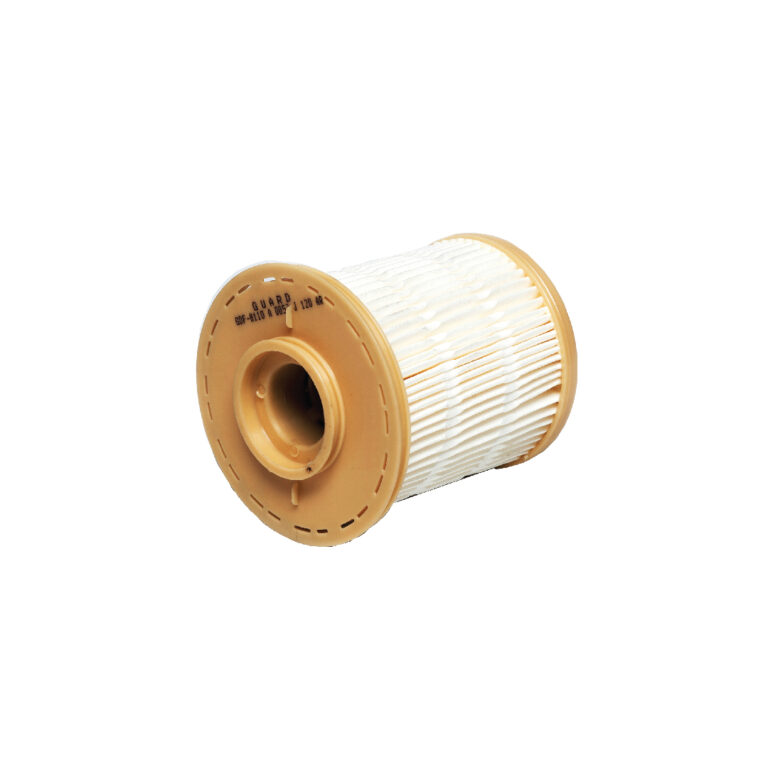

GDF-8110
23304-78110
HEIGHT: 112.0 mm
OUTER DIA: 104.2 mm
INNER DIA: 28.8 mm
GASKET PACKING KIT: YES
Fuel Filters
GDS-651C
4052965
Height: 136mm
Diameter Top: 95mm
Thread Size: 1 1/16-16 UNF
GASKET INNER
BY PASS VALUE PRESSURE=NO
ANTI DRAIN BACK VALUE=NO

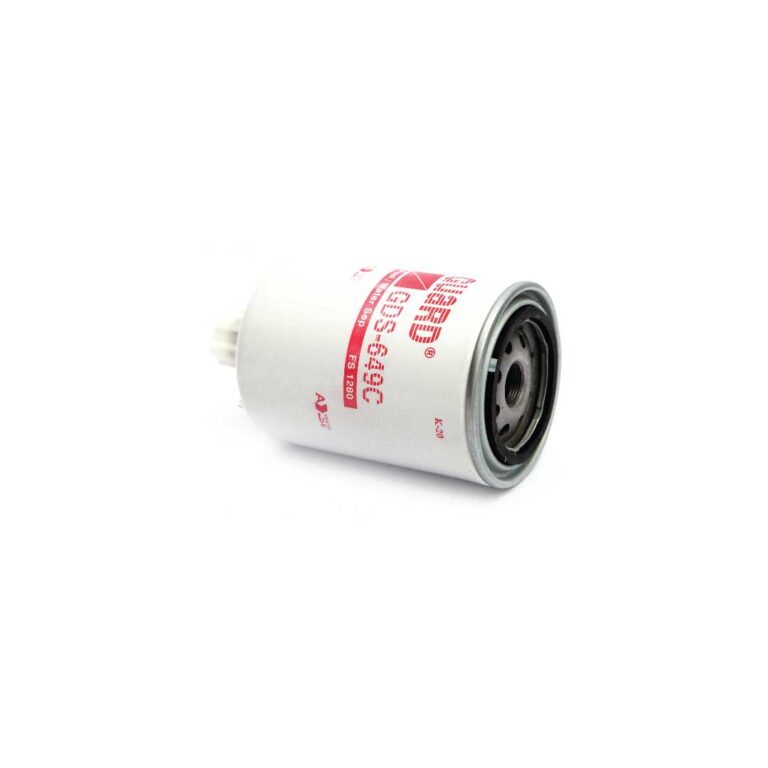

GDS-649 C
FF-1280/A-77470/3903410/3903410/11E1-70210/
673-271-6120/99912-03410
HEIGHT = 163.5 mm
OUTER DIA = 93.73 mm
THREAD = M20X1.5 UNF
SEAM DIA = 93.85 mm
GASKET INNER
BY PASS VALUE PRESSURE = NO
ANTI DRAIN BACK VALUE = NO

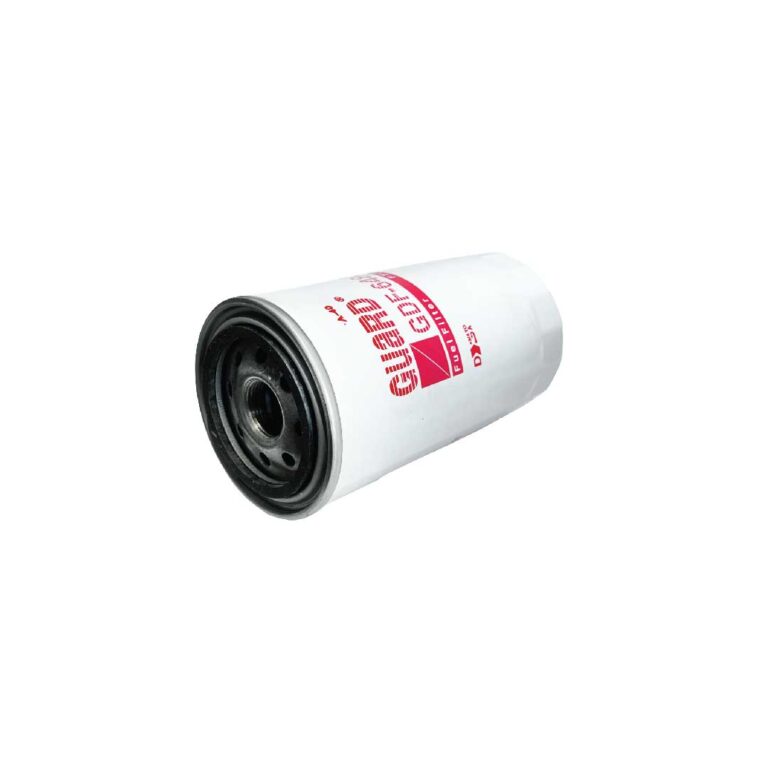

GDF-648C
FF-185/CAT-IP-2299
HEIGHT = 176.28 mm
OUTER DIA = 93.47 mm
THREAD = 1-14UNF
SEAM DIA = 93.5 mm
GASKET-INNER
BY PASS VALUE PRESSURE = NO
ANTI DRAIN BACK VALUE = NO

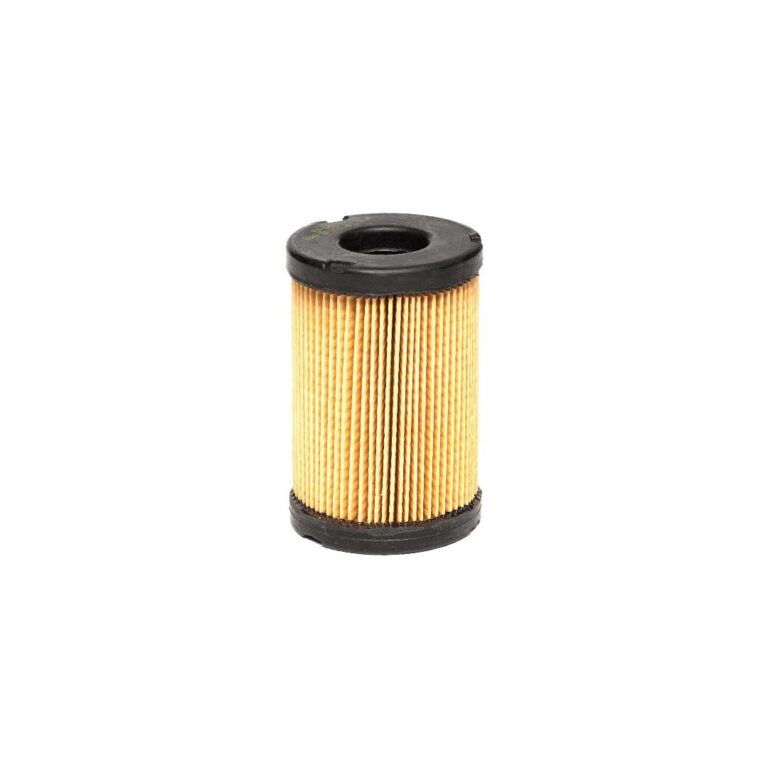

GDF-647 C
26560163
HEIGHT = 116.3 mm
OUTER DIA = 76.1 mm
KIT = YES
GASKET PACKING KIT YES
BY PASS VALUE PRESSURE = NO
ANTI DRAIN BACK VALUE = NO

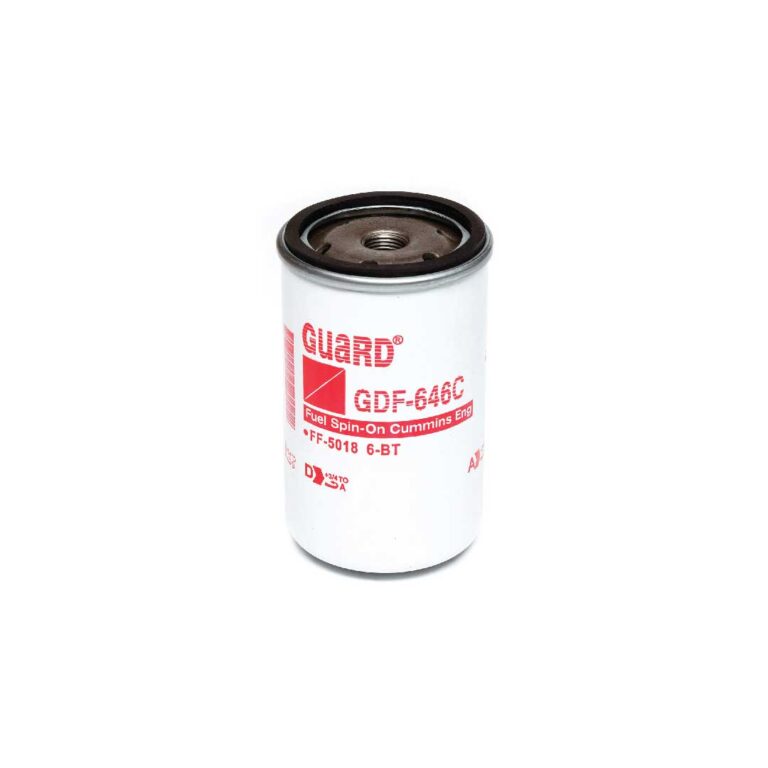

GDF-646C
FF-5018/1174423/SW-3394/1160243/01160243/
5411316410/243004
HEIGHT = 125 mm
OUTER DIA = 77.5 mm
THREAD = M16X1.5
GASKET OUTER
BY PASS VALUE PRESSURE = NO
ANTI DRAIN BACK VALUE = NO

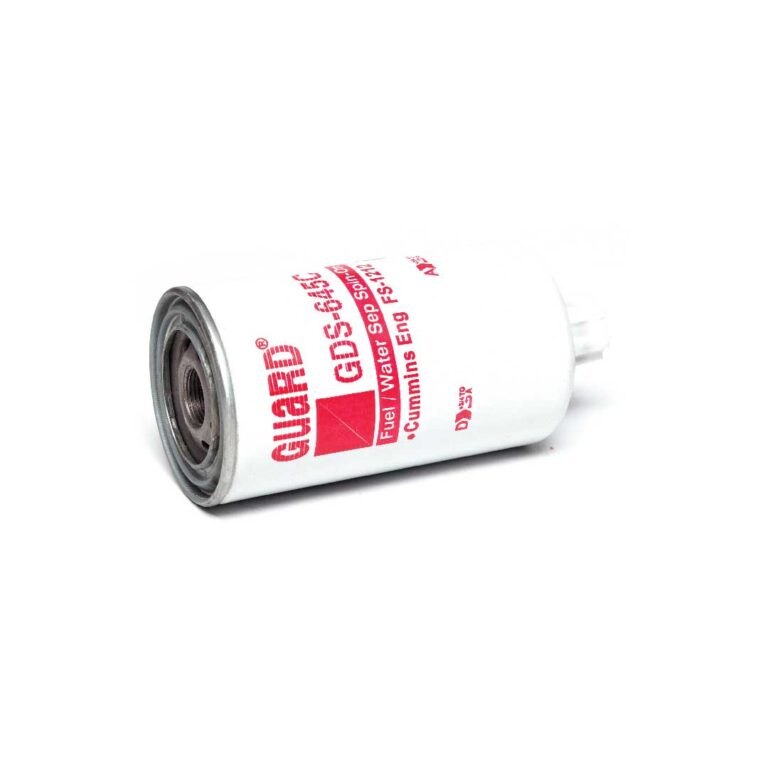

GDS-645C
FF-1212/903941/3308638/4291867/11E-70220/
RE-42050/1214920-H1
HEIGHT 201.17 mm
OUTER DIA = 93.73 mm
THREAD=1-14 UNF
SEAM DIA= 94.5 mm
GASKET-INNER
BY PASS VALUE PRESSURE = NO
ANTI DRAIN BACK VALUE = NO

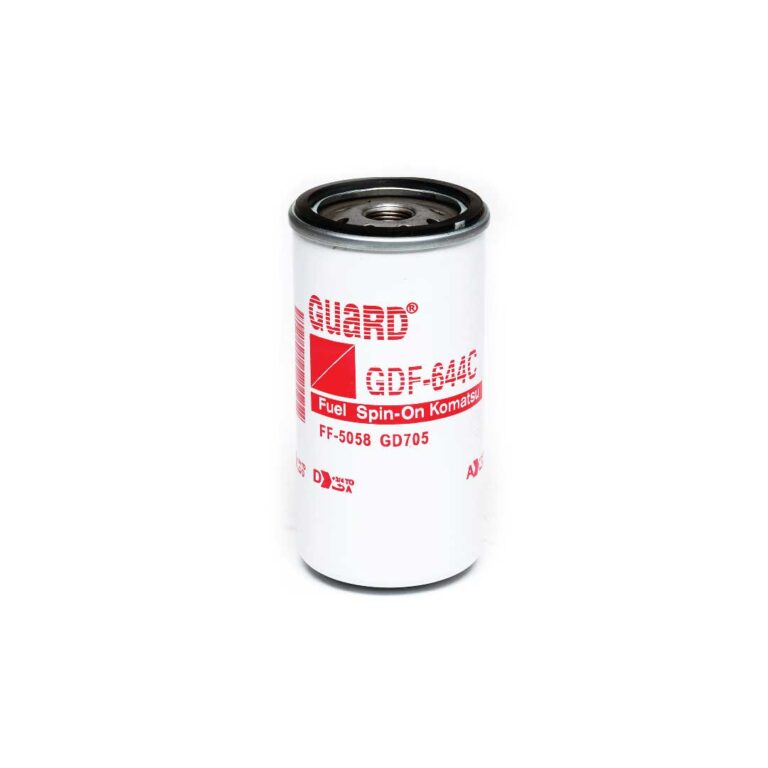

GDF-644C
FF-5058
HEIGHT = 150.11 mm
OUTER DIA = 77.47 mm
THREAD = 3/4-16 UNF
SEAM DIA = 78.1 mm
GASKET OUTER
BY PASS VALUE PRESSURE = NO
ANTI DRAIN BACK VALUE = NO

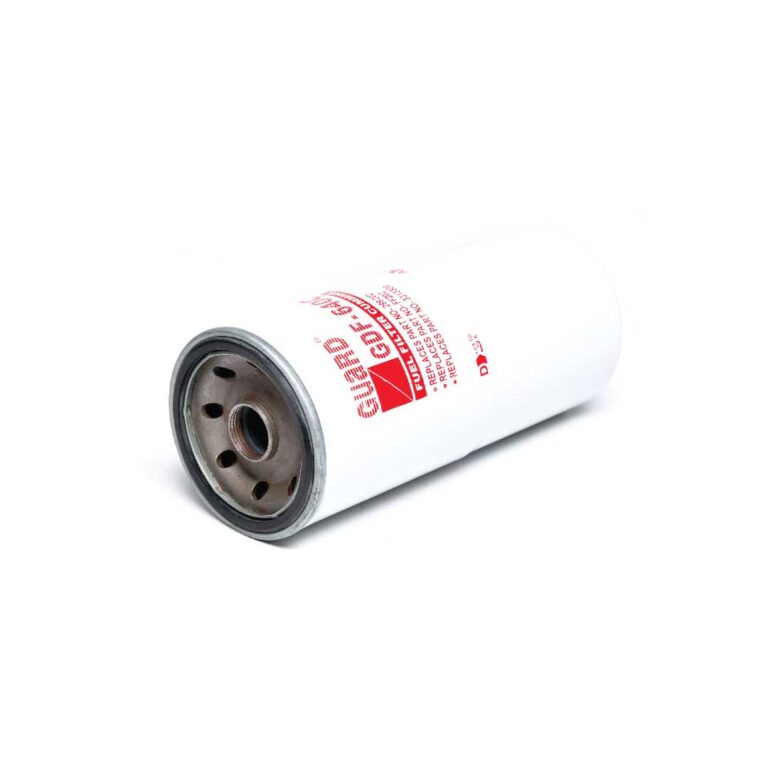

GDF-640C
FF-202299202
600-311-7132
HEIGHT = 287.24 mm
OUTER DIA = 120.20 mm
GASKET OUTER
BY PASS VALUE PRESSURE=NO
ANTI DRAIN BACK VALUE=NO

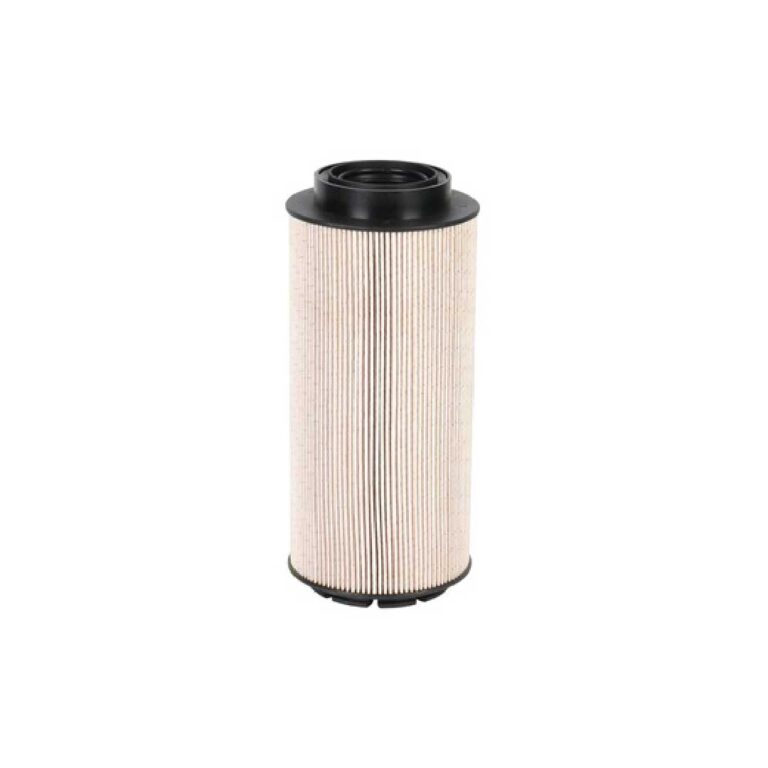

GDF-497
8-98092481-1
HEIGHT 188 mm
OUTER DIA 101 mm
INNER DIA 20.5 mm
GASKET PACKING KIT NO

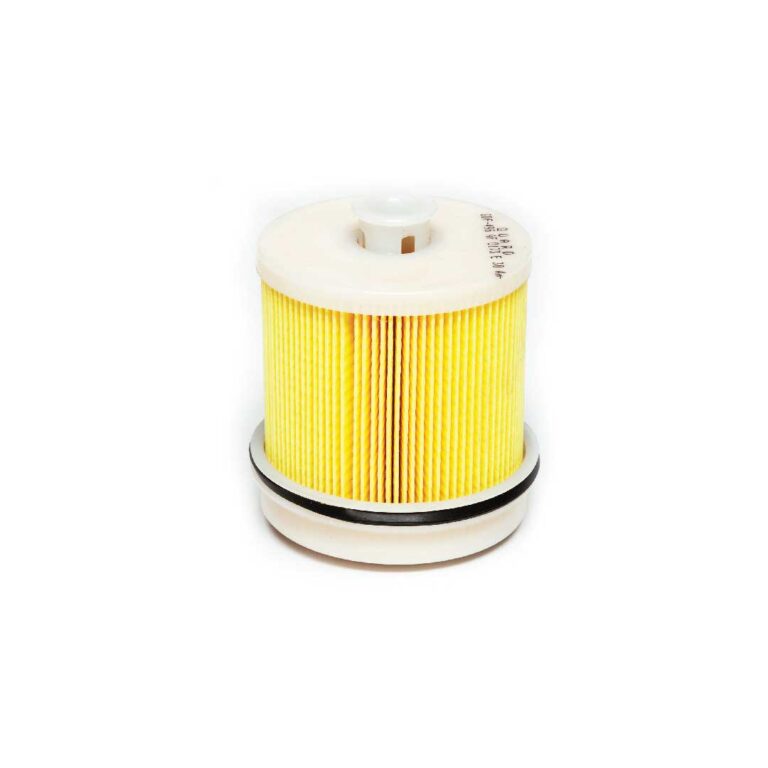

GDF-496
8-98203599-0
HEIGHT: 116MM
OUTER DIAMETER TOP: 98MM
OUTER DIAMETER BOTTOM: 91MM
INSIDE DIAMETER: 12MM
GASKET PACKING KIT YES

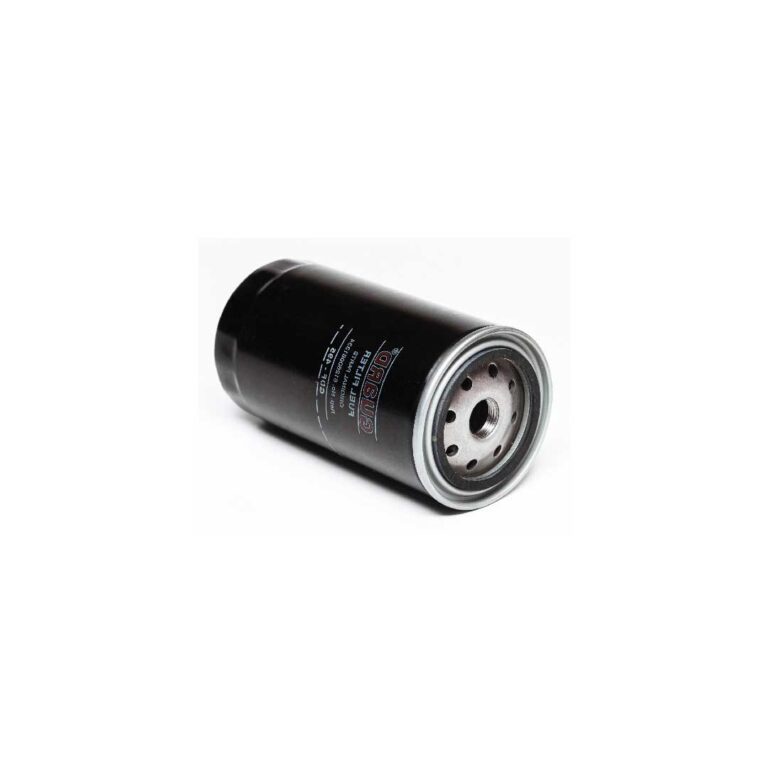

NORTH BENZ 2534, 2536, 2532 (Model: 2012)
GDF-495
61260081334
HEIGHT: 170mm
OUTER DIAMETER TOP: 95MM
THREAD SIZE: M24X2
GASKIT INNER

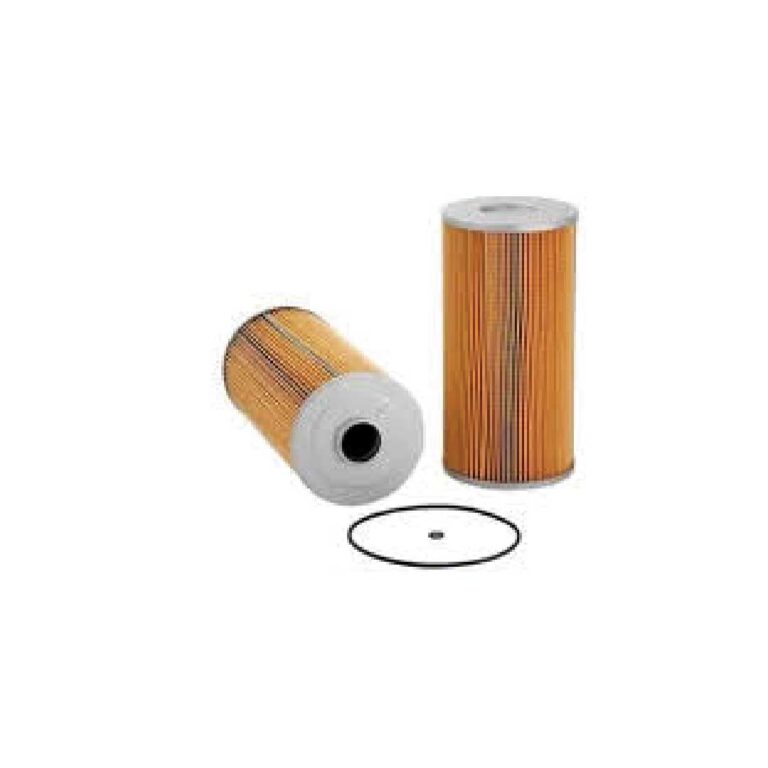

GDF-491
23401-1730
Height: 193mm
Outer Diameter: 95mm
Inside Diameter: 27mm
GASKET PACKING KIT= YES

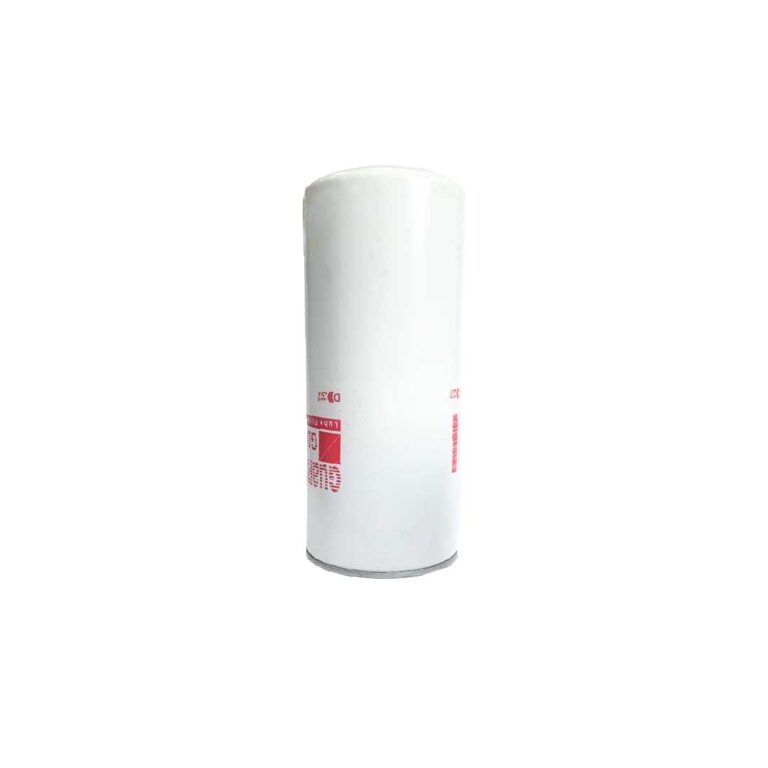

GDF-494
1117050A81DM
HEIGHT 261.0 mm
INNER DIA 117.8 mm
THREAD 1 1/4×16 UNF
GASKET OUTER
BY PASS VALVE (PRESSURE) NO
ANTIDRAIN BACK VALVE NO
PACKING YES
